Solar–Diesel–BESS Microgrid Project Configuration

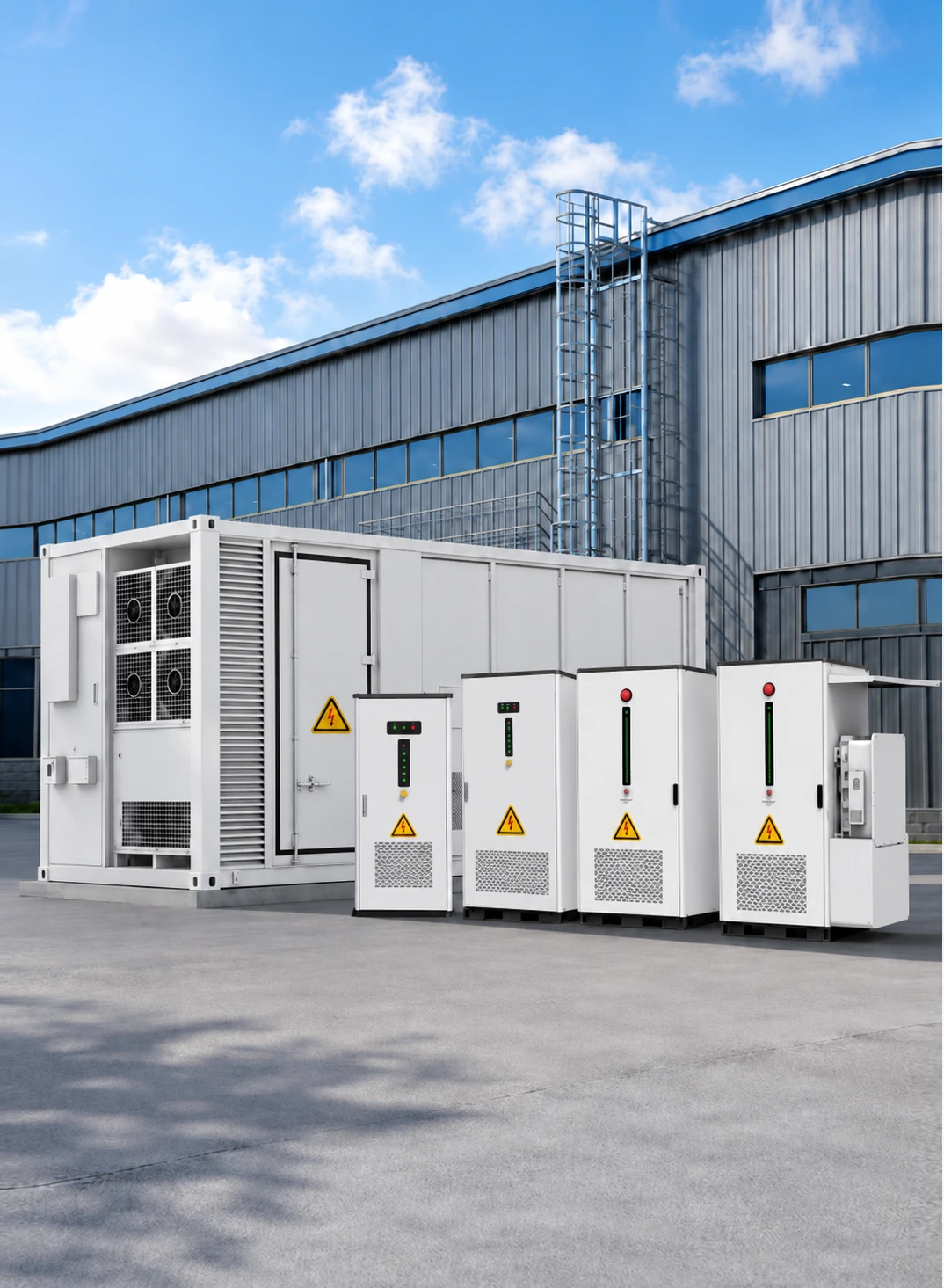

A battery-led hybrid microgrid coordinates battery storage, solar PV, diesel generation and site loads through a defined electrical and control architecture. Equipment selection starts with the load profile and operating modes; combining devices does not establish compatibility or backup capability.

Define each system boundary

• BESS and BMS: establish the required usable energy, operating limits and battery protection responsibilities.
• PCS: confirm bidirectional conversion, voltage range, control interfaces and the operating modes of the selected model.
• Solar PV: select the coupling arrangement and document how PV output is controlled when loads or charging capacity are limited.
• Diesel generator: define start/stop authority, operating constraints, synchronizing responsibilities and fuel-system scope.
• Distribution and protection: identify switching, isolation, earthing, metering and protection responsibilities for each operating mode.
• EMS: specify dispatch priorities, battery reserve policy, communications, alarm handling and remote-access requirements.

Agree on operating modes before ordering

Document grid-connected operation, planned islanding, outage recovery and generator-assisted operation separately where required. Ask which device establishes voltage and frequency in each mode, how sources are permitted to connect and which loads may remain energized. Black start, seamless transfer, parallel operation and export limitation are model- and project-specific: To be confirmed.

Project information for a configuration review

Provide the site country, voltage and frequency, interval load data, critical loads, required backup duration, existing generator and inverter models, single-line diagram and installation conditions. Identify the owner of utility approvals and local engineering sign-off. Request model-specific datasheets and an interface responsibility matrix before final procurement.

Can any PCS work with any battery or generator?

Compatibility is To be confirmed for the exact battery, PCS, controller, firmware and generator interface. A common communication protocol or a similar nominal rating does not establish an approved configuration. Request documented integration evidence and a project-specific commissioning test plan.

Scope and evidence

This page describes equipment categories and project questions identified in a supplier technical brochure. It does not certify a particular model or claim manufacturer authorization. Final capacities, efficiencies, certifications, warranty, price and delivery remain To be confirmed in project documentation.
